Road Cleaning / Manufacturer in India

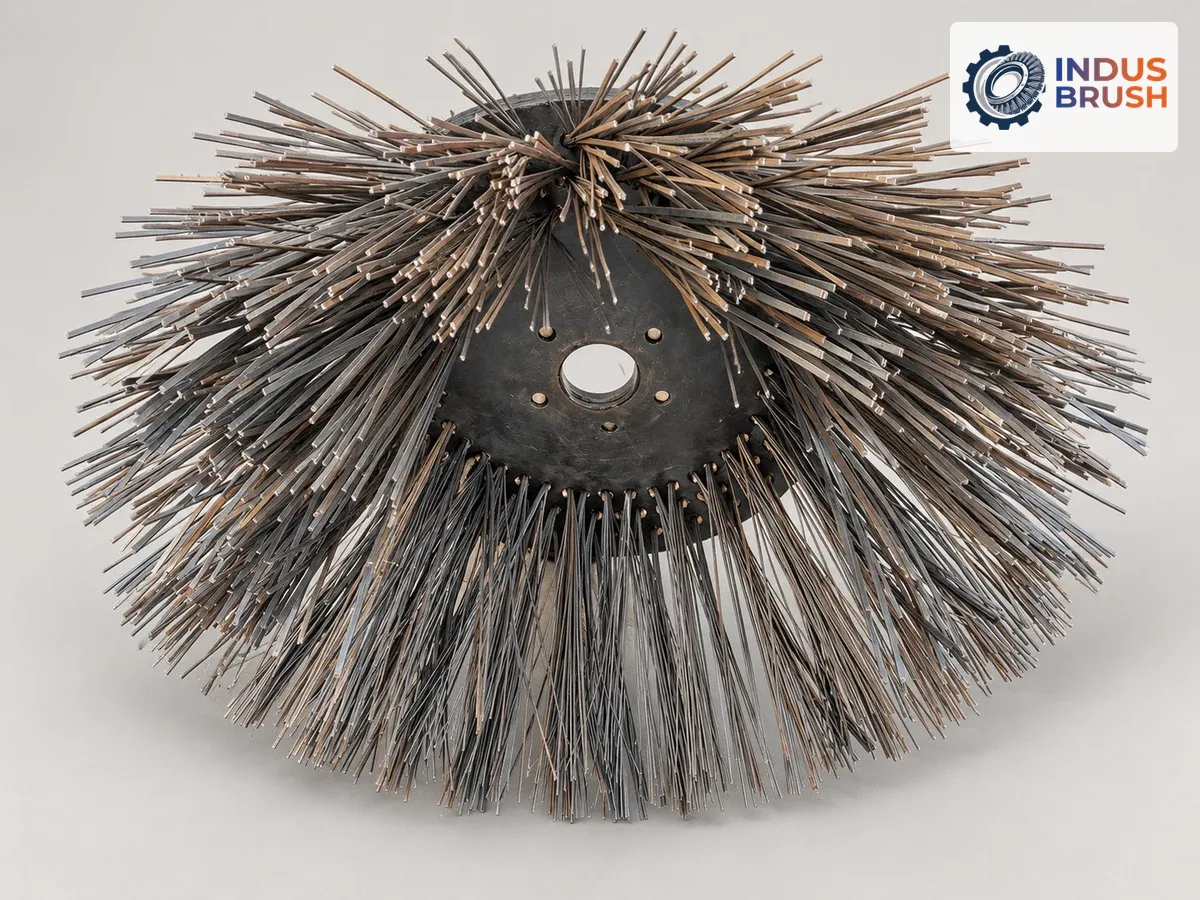

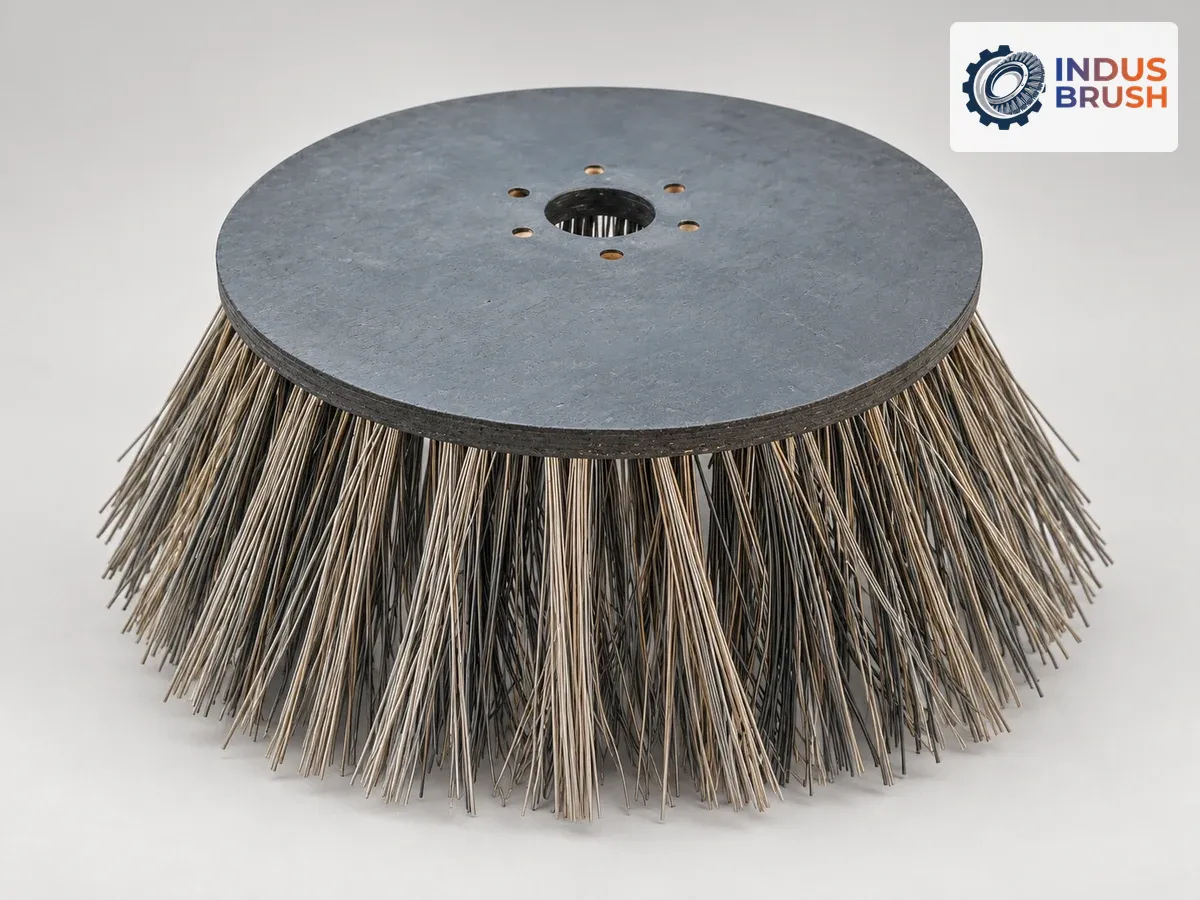

Steel Wire Side Broom
A steel-wire side broom for compatible road-sweeping equipment. Specify the mounting disc, wire layout and required sweeping contact from the actual machine.
- Construction
- Steel-wire filaments on a circular mounting disc
- Configuration
- Matched to your sample or drawing
- Application
- Compatible gutter-broom replacement
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
This broom uses wire fill rather than the orange polymer/wire mix shown in the separate mixed-filament listing. The disc fixing pattern, wire section and trim must correspond to the sweeper and the work surface. A top view of the mounting disc and a side view of the bristle cone are the most useful starting photographs.
Construction & material
Steel-wire filaments on a circular mounting disc
Technical name: Steel Wire Side Broom / Gutter Broom / Disc BroomListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Steel Wire Side Broom / Gutter Broom / Disc Broom |
| Construction | Steel-wire filaments on a circular mounting disc |
| Dimensions | Specify against a sample or measured drawing. |
| Details to confirm | Disc diameter and thickness, centre opening, hole pattern and wire section; trim length and approved machine limits |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the side-broom plate and working profile
Record the mounting plate and steel-wire profile separately. Include the existing wire section and machine limits in the enquiry; similar-looking side brooms may use different fixing patterns.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Mounting-plate diameter and thickness | Measure the rigid plate or block, excluding bristles. Show any stepped or recessed areas on a sketch. |
| Centre opening | Record the centre-hole size and shape. Include flats, slots or a raised hub where present. |
| Fixing-hole pattern | Provide the hole count, hole diameters and centre positions. Use a pitch-circle dimension for an equally spaced circular pattern or an accurately dimensioned drawing for other patterns. |
| Bristle tip-to-tip diameter | Record the widest brush diameter without spreading or compressing the bristles. Label worn size separately from required replacement size. |
| Exposed filament trim | Measure from the point where the filament leaves the mounting to its tip along the filament direction; this is not the vertical assembly height. |
| Overall height and profile | Give the overall height from the top mounting face to the lowest bristle tips. Include a side-view sketch of the conical or angled profile. |
Photographs to include
- Provide a straight-on photograph of the mounting face with a scale and all fixing holes visible.
- Show the complete side profile so plate, bristle angle and assembly height can be distinguished.
- Include a close view of the filament arrangement and identify the sweeper model and brush position.
Where it fits in the process
01
Compatible gutter-broom replacement
02
Specified road-edge sweeping
03
Matching steel-wire side-brush assemblies
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Photograph the mounting or drive faces.
- Measure the unworn fixing dimensions separately from the bristle-tip diameter.
- Specify debris, work surface and machine model.
- Confirm assembly order, speed limits and required quantity.
For this product, pay particular attention to:
Disc diameter and thickness, centre opening, hole pattern and wire section; trim length and approved machine limits.
Frequently asked questions
When should steel wire be avoided for side sweeping?
Wire contact is unsuitable for some surfaces and work sites. Confirm the surface restrictions, debris and sweeper requirements first; match the mounting and wire construction rather than choosing on cleaning aggressiveness alone.
Can it be used on every paved surface?
No. Steel wire can be unsuitable for some surfaces and operating environments. Confirm the surface restrictions, site requirements and machine maker’s approved brush construction.
What information is needed to quote this steel wire side broom?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Disc diameter and thickness, centre opening, hole pattern and wire section; trim length and approved machine limits.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Plate-mounted wire broom or stacked wire wafers?
This side broom is a mounted assembly for the side-sweeping position. Record the plate and fixing pattern as well as bristle profile. A wire wafer is one ring of a different core-mounted assembly.
- Steel Wire Wafer Ring Brush ↗
Compare the ring-stack format if the machine takes wafers.
- Wire & Poly Mixed Gutter Broom ↗
Compare the mixed wire/poly side-broom fill.
Related terminology: steel wire gutter broom; wire sweeper side brush. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: steel-wire road sweeper side-broom replacement
Request this brush from IndusBrush, India, for steel-wire road sweeper side-broom replacement. Include the following details so the supplied configuration can be reviewed against your equipment.
- Disc diameter, centre opening and fixing pattern
- Wire section, trim length and brush working profile
- Sweeper limits, operating surface and set quantity
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Road Cleaning brush applications ↗
Inspection & care
Inspect fixings, drive engagement and worn or loose filaments with the machine isolated. Follow the sweeper maker’s replacement and operating instructions.
Technical reading & application context
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
