Studio-retouched product views. Refer to the confirmed drawing for exact dimensions and construction.

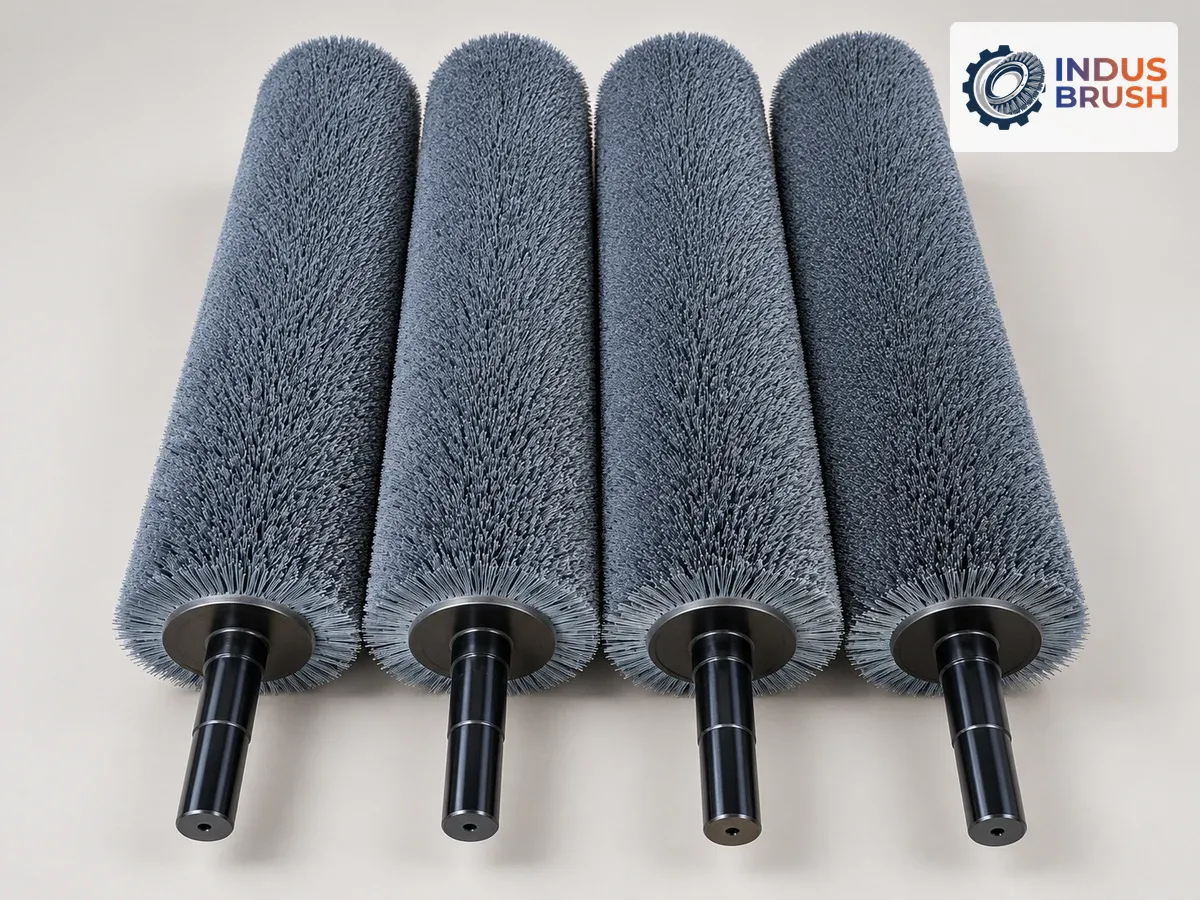

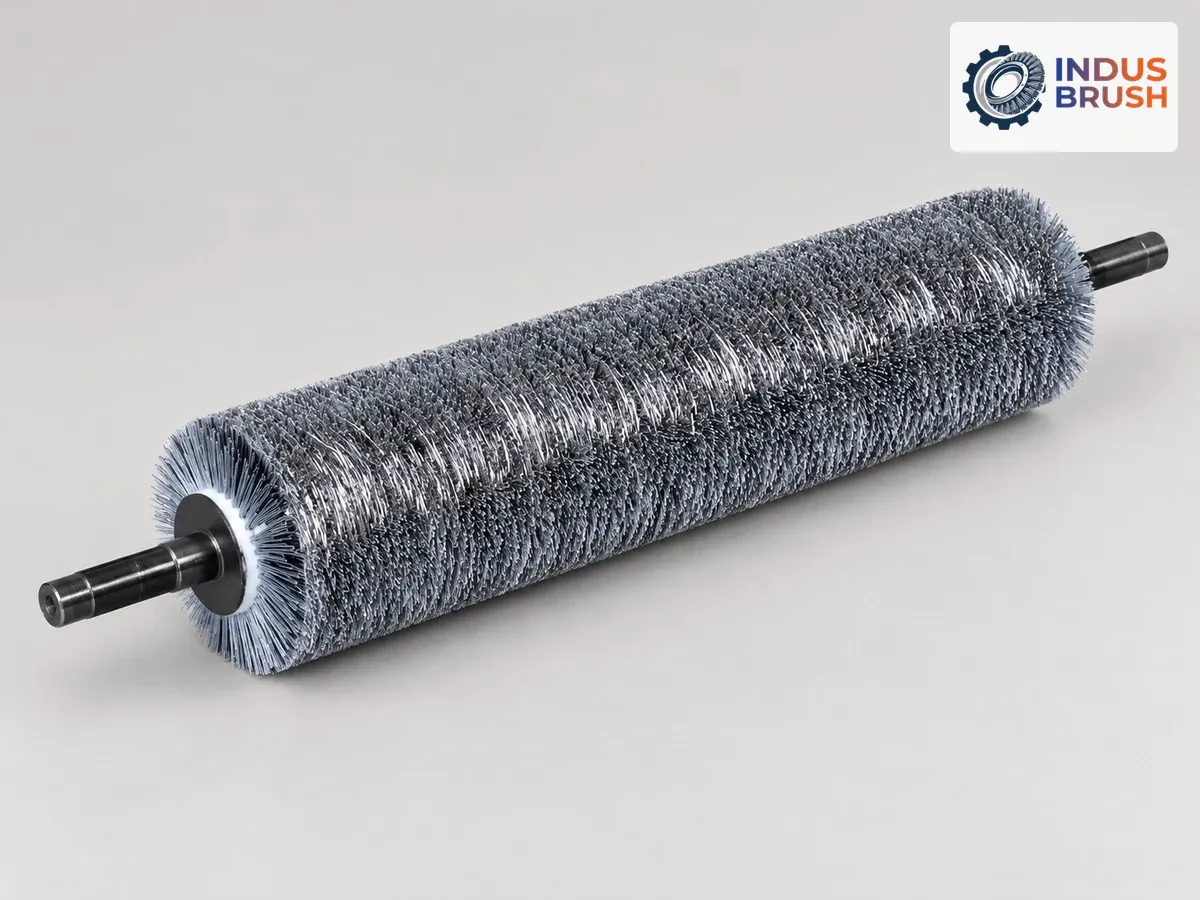

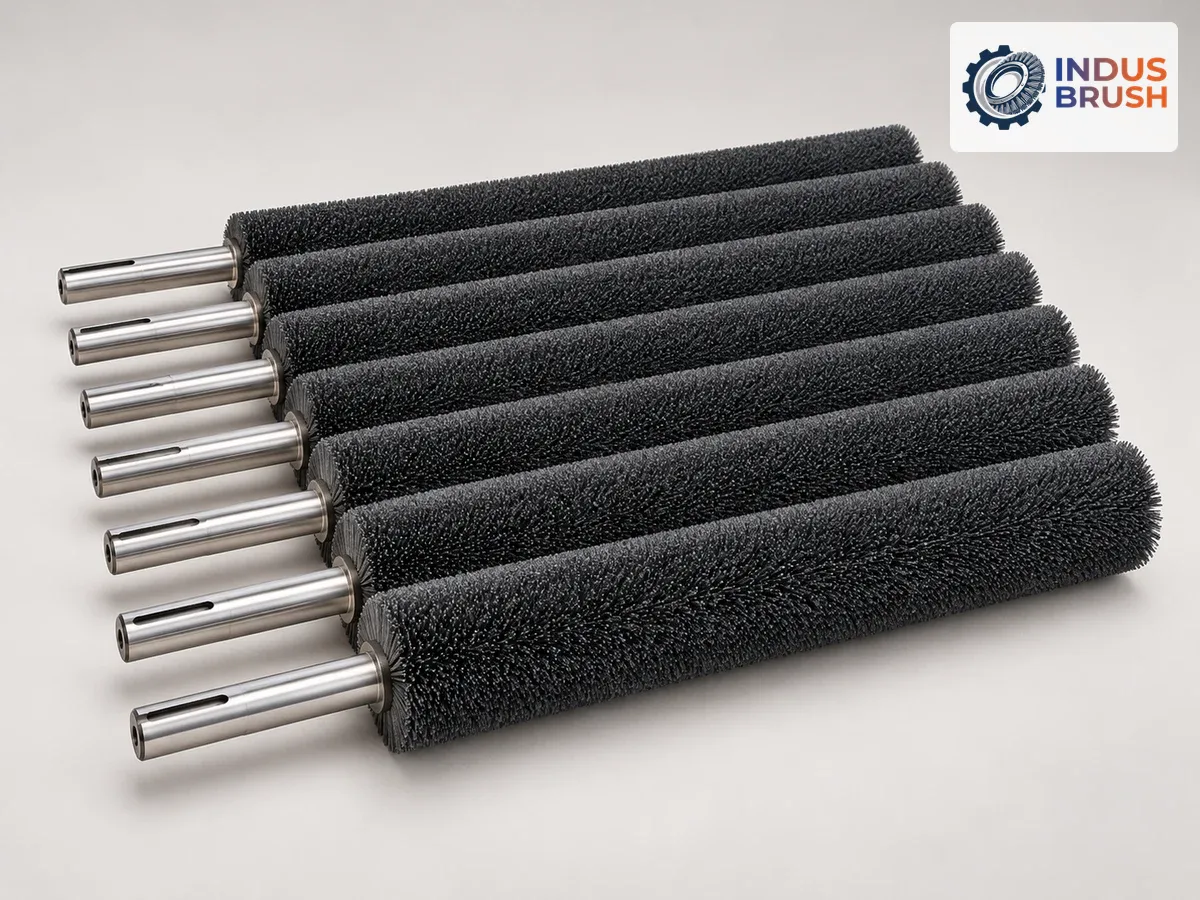

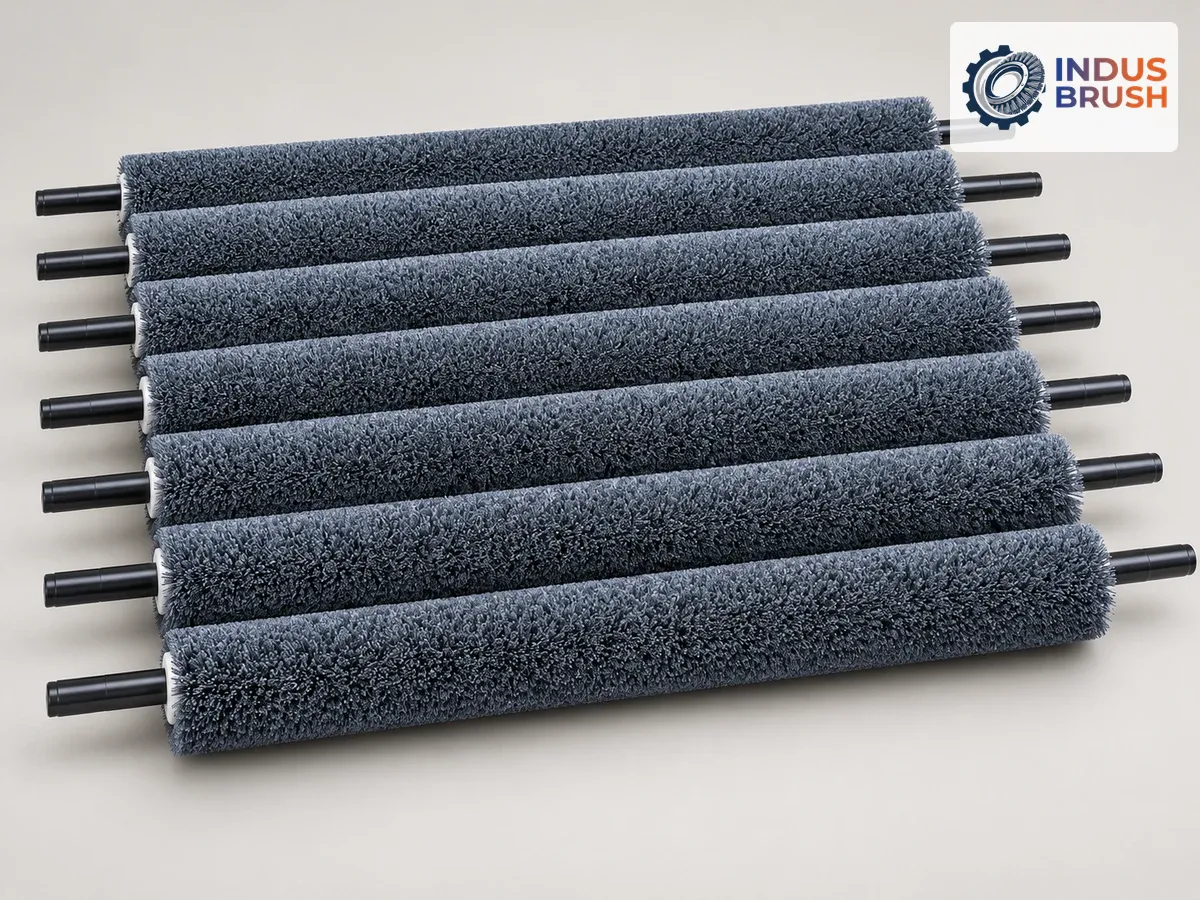

Silicon Carbide Abrasive Roller Brush
An abrasive nylon roller with silicon-carbide-filled filaments for wood sanding and surface finishing. Select the grit, brush engagement and shaft configuration for the finish you need.
- Construction
- Silicon-carbide abrasive nylon filaments
- Configuration
- 54 in nominal length / 4 in roll / 7 in outside diameter · More options below
- Application
- Wood de-nibbing and finishing trials
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
Abrasive-filled nylon acts as a flexible finishing medium rather than a rigid cutting edge. The result depends on grit, filament geometry, feed direction and contact with the workpiece. The listed roll configurations identify available starting sizes; they do not establish a universal grit or safe speed. A sample board and the required finish are useful alongside a shaft drawing.
Silicon-carbide abrasive nylon filaments
Technical name: Cylindrical Silicon Carbide Abrasive Nylon Roller BrushListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Cylindrical Silicon Carbide Abrasive Nylon Roller Brush |
| Construction | Silicon-carbide abrasive nylon filaments |
| Listed option 1 | 54 in nominal length / 4 in roll / 7 in outside diameter |
| Listed option 2 | 54 in nominal length / 5 in roll / 8 in outside diameter |
| Details to confirm | Working face length, core and brush OD, shaft ends; abrasive grit, machine RPM and desired finish |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the roller and its mounting
Separate abrasive brush face length, core diameter and shaft-end dimensions. A catalogue roll size is not a substitute for a complete shaft drawing or the machine operating limits.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Brush face length | Measure along the axis between the start and end of the bristled working face; exclude exposed shaft ends. |
| Brush outside diameter | Record the diameter across the bristle tips without compressing them. Identify whether it is a worn measurement or a required replacement diameter. |
| Core outside diameter | Record the diameter of the body carrying the filaments, excluding bristles. If it cannot be measured, mark it unknown and include an end view. |
| Shaft diameters and bearing seats | Provide diameters and lengths of each shaft step and bearing seat at both ends; identify each end on the drawing. |
| Overall length | Record the complete assembly length, including exposed ends. For a sleeve-only order, record sleeve body length separately from brush face length. |
| Drive end and shaft features | Dimension keys, flats, threads, shoulders and the drive connection. Include the machine speed requirement and abrasive specification separately in the enquiry. |
Photographs to include
- Photograph the full roller beside a scale, showing both ends without cropping.
- Provide a straight-on view of each end and a close view of the drive or retention feature.
- Show the tuft arrangement and identify the machine position where this roller is used.
Where it fits in the process
Wood de-nibbing and finishing trials
Plywood and veneer surface preparation
Matching abrasive roller replacement
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Measure the working face, core and overall brush diameter.
- Include shaft-end diameters, lengths and drive details.
- State wood species, finishing stage and target surface.
- Provide the machine speed range and an example workpiece.
Working face length, core and brush OD, shaft ends; abrasive grit, machine RPM and desired finish.
Frequently asked questions
Is this an abrasive nylon brush or a sanding flap roller?
This catalogue product is a cylindrical brush with abrasive-filled nylon filaments. A flap roller uses abrasive sheets or separate sanding elements. Confirm the construction, required finish and machine before selecting a replacement.
Which grit and RPM should I choose for a sanding roller?
There is no single setting for every wood or finish. Supply the substrate, coating stage, feed rate and machine limits. The abrasive and speed must be selected for that combination and checked on a sample.
What information is needed to quote this silicon carbide abrasive roller?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Working face length, core and brush OD, shaft ends; abrasive grit, machine RPM and desired finish.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Abrasive nylon filaments or sanding flap strips?
This product uses abrasive-filled nylon filaments. A machine requiring sanding sheets or flap-strip inserts needs a different working element. Identify the actual element, shaft geometry and desired wood finish before choosing the replacement.
Related terminology: abrasive nylon sanding roller; wood finishing roller brush. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: wood sanding and surface-finishing machinery
Request this brush from IndusBrush, India, for wood sanding and surface-finishing machinery. Include the following details so the supplied configuration can be reviewed against your equipment.
- Working face, brush and core diameters and both shaft ends
- Abrasive grit, workpiece and required finish
- Machine speed limits, drive and bearing-seat drawing
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Wood Finishing brush applications ↗
Inspection & care
Keep the brush free of trapped debris and check shaft support, balance and wear. Establish the working engagement on a sample before production.
Technical reading & application context
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
