Road Cleaning / Manufacturer in India
Wire & Poly Mixed Gutter Broom
A mixed-filament side disc combining steel wire and polymer bristles for road-sweeping applications. Specify the fill mixture as well as the mounting dimensions.
- Construction
- Steel wire and polymer mixed fill
- Configuration
- 18 in nominal size · More options below
- Application
- Mixed-debris road sweeping
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
The wire and polymer elements provide different types of contact within the same circular sweep. A mixed broom should be selected for the actual debris and road surface rather than treated as a universal upgrade. Mounting pattern, filament distribution and working trim are part of the replacement specification.
Construction & material
Steel wire and polymer mixed fill
Technical name: Wire-Poly Combo Gutter Broom / Mixed Filament Side Disc BrushListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Wire-Poly Combo Gutter Broom / Mixed Filament Side Disc Brush |
| Construction | Steel wire and polymer mixed fill |
| Listed option 1 | 18 in nominal size |
| Listed option 2 | 20 in nominal size |
| Listed option 3 | 24 in nominal size |
| Details to confirm | Wire/poly arrangement and ratio; fixing plate, overall diameter, trim length and surface restrictions |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the side-broom plate and working profile
Identify the mixed wire and polymer pattern separately from the mounting dimensions. Plate diameter and worn tip-to-tip diameter are different measurements.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Mounting-plate diameter and thickness | Measure the rigid plate or block, excluding bristles. Show any stepped or recessed areas on a sketch. |
| Centre opening | Record the centre-hole size and shape. Include flats, slots or a raised hub where present. |
| Fixing-hole pattern | Provide the hole count, hole diameters and centre positions. Use a pitch-circle dimension for an equally spaced circular pattern or an accurately dimensioned drawing for other patterns. |
| Bristle tip-to-tip diameter | Record the widest brush diameter without spreading or compressing the bristles. Label worn size separately from required replacement size. |
| Exposed filament trim | Measure from the point where the filament leaves the mounting to its tip along the filament direction; this is not the vertical assembly height. |
| Overall height and profile | Give the overall height from the top mounting face to the lowest bristle tips. Include a side-view sketch of the conical or angled profile. |
Photographs to include
- Provide a straight-on photograph of the mounting face with a scale and all fixing holes visible.
- Show the complete side profile so plate, bristle angle and assembly height can be distinguished.
- Include a close view showing the wire and polymer arrangement, plus the sweeper model and brush position.
Where it fits in the process
01
Mixed-debris road sweeping
02
Gutter and kerb cleaning
03
Matching mixed-fill side-broom replacement
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Photograph the mounting or drive faces.
- Measure the unworn fixing dimensions separately from the bristle-tip diameter.
- Specify debris, work surface and machine model.
- Confirm assembly order, speed limits and required quantity.
For this product, pay particular attention to:
Wire/poly arrangement and ratio; fixing plate, overall diameter, trim length and surface restrictions.
Frequently asked questions
Is a mixed wire and polymer broom the same as an all-wire broom?
No. A mixed-fill side broom combines polymer and wire in the working face, while an all-wire broom uses wire throughout. Specify the required arrangement and confirm whether the surface permits wire contact.
Why does the wire/poly ratio matter?
The ratio changes the balance of wire contact and polymer sweeping contact. Share the existing broom specification and the type of debris so the replacement can be matched instead of choosing from colour alone.
What information is needed to quote this wire & poly mixed gutter broom?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Wire/poly arrangement and ratio; fixing plate, overall diameter, trim length and surface restrictions.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Mixed fill, nylon or all-wire side broom?
The pictured gutter broom combines wire and polymer filaments. Compare the working surface, debris and machine-permitted fill before changing the mixture. Match the mounting plate and hole pattern separately from the bristle diameter.
- Metal-Top Nylon Gutter Broom ↗
Compare the nylon-filled side-broom construction.
- Steel Wire Side Broom ↗
Compare the all-wire construction when the machine and working surface permit it.
Related terminology: mixed filament side broom; combination gutter broom. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: road sweeper side-broom replacement
Request this brush from IndusBrush, India, for road sweeper side-broom replacement. Include the following details so the supplied configuration can be reviewed against your equipment.
- Plate diameter, centre opening and fixing-hole drawing
- Tip-to-tip diameter, trim and wire/poly arrangement
- Sweeper model, operating surface and replacement-set quantity
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Road Cleaning brush applications ↗
Inspection & care
Inspect fixings, drive engagement and worn or loose filaments with the machine isolated. Follow the sweeper maker’s replacement and operating instructions.
Technical reading & application context
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
Explore the range
Road Cleaning Brushes
Explore product photographs and listed configurations, then share your machine requirements.
2 views
3 views
Road Cleaning

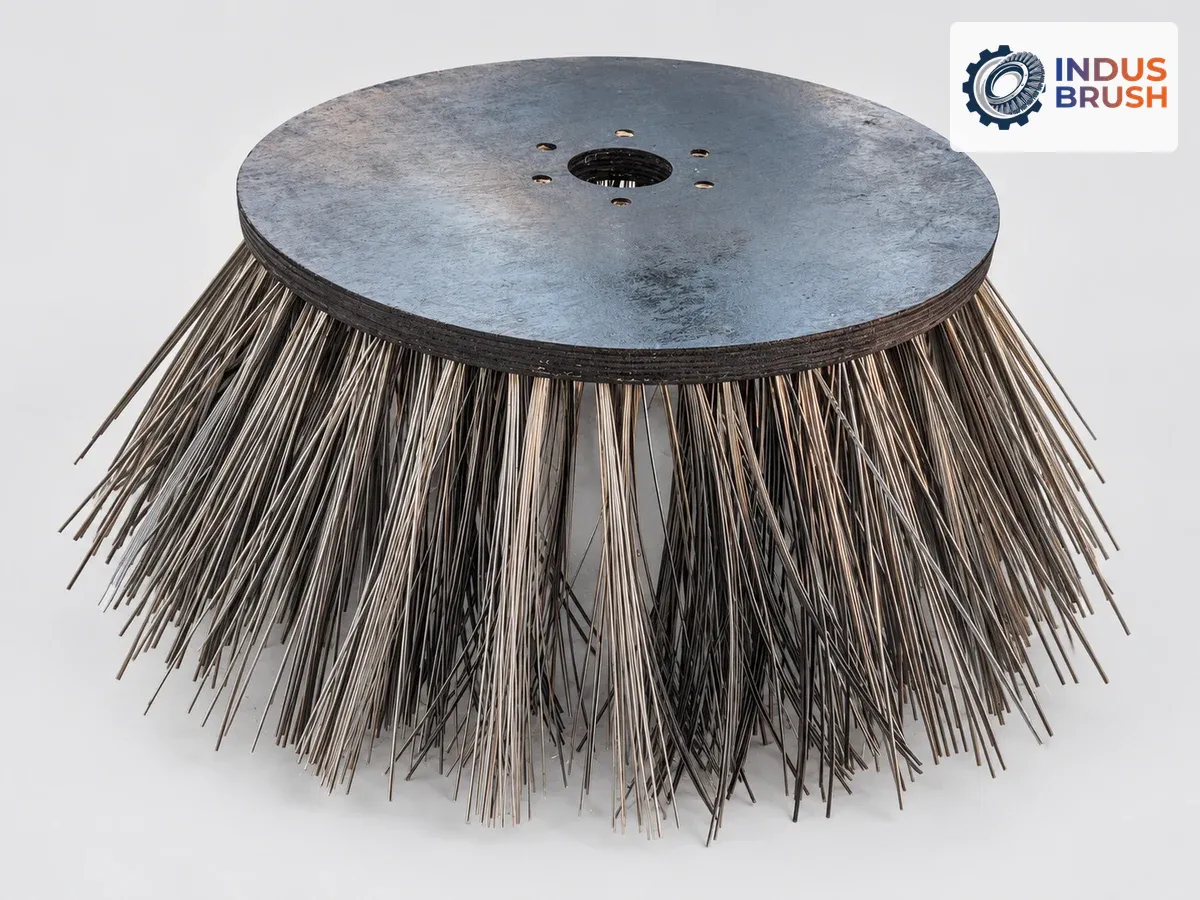

Steel Wire Side Broom
Steel wire side broom for road sweeping equipment. Share your machine and mounting dimensions for matching.
Explore product
Representative image
Road Cleaning

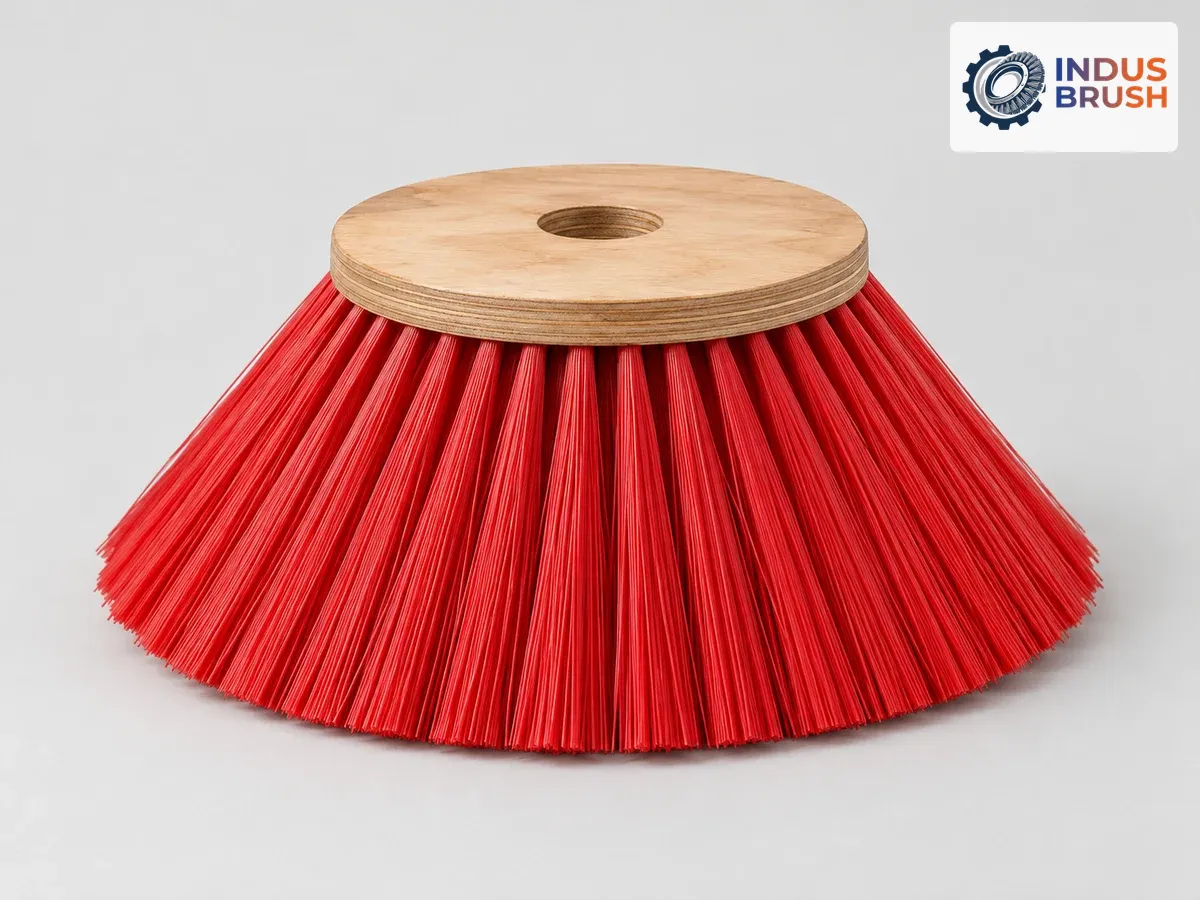

Conical Side Sweeping Brush
