Textile / Manufacturer in India

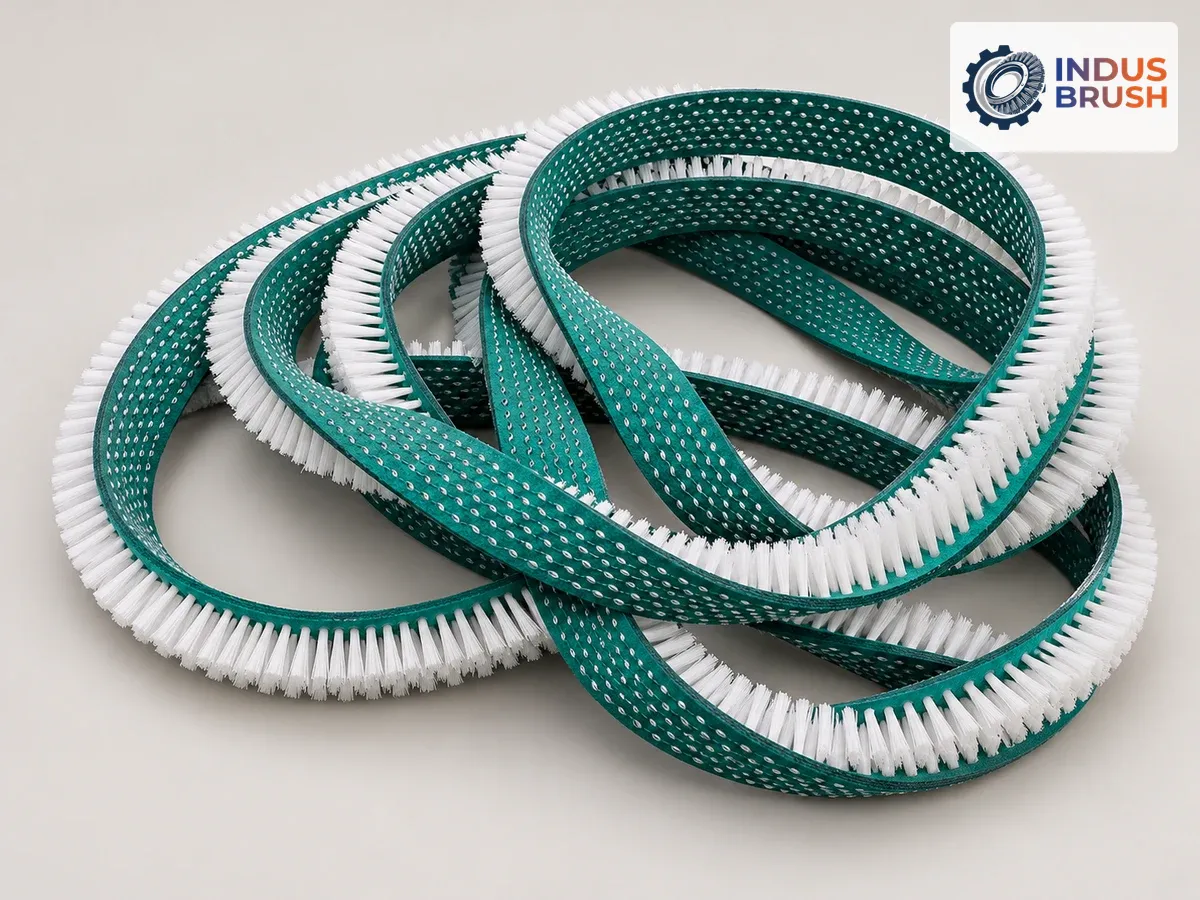

Flexible Tufted Brush Belt
A flexible tufted belt for textile-machine guiding and cleaning duties. Match the backing profile, running length and bristle arrangement to the belt path.
- Construction
- Flexible tufted backing with the specified filament fill
- Configuration
- 1 ft catalogue length unit; finished belt length to specify
- Application
- Textile brush-belt replacement
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
Unlike a fixed strip brush, a brush belt moves around pulleys and follows the machine’s transport path. Its backing, joint, flexibility and tuft layout therefore influence fit as well as brushing contact. Stenter and fabric-guiding functions differ between machines; a belt for one position should not be assumed suitable for another.
Construction & material
Flexible tufted backing with the specified filament fill
Technical name: Flexible Tufted Belt Brush / Timing Belt Brush / Stenter Machine Brush BeltListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Flexible Tufted Belt Brush / Timing Belt Brush / Stenter Machine Brush Belt |
| Construction | Flexible tufted backing with the specified filament fill |
| Listed option 1 | 1 ft catalogue length unit; finished belt length to specify |
| Details to confirm | Belt width, backing thickness and profile, open or endless length; pulley diameter, joint and filament trim |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the backing, length and bristle trim
First identify an open strip or a finished continuous loop. A catalogue length unit is not the finished belt circumference.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Backing width | Measure across the backing, perpendicular to its running direction; distinguish this from the spread of the bristle tips. |
| Backing thickness | Measure the backing alone, without including the bristle trim. If there are teeth or ribs, show their profile separately. |
| Open length or finished circumference | State whether the requirement is an open length or a closed loop. For a loop, identify where its circumference is measured; include the drawing reference or pitch length if specified by the machine. |
| Bristle trim and working width | Measure exposed bristle length from the backing surface to the tips without compressing it. Also give the width actually covered by tufts. |
| Backing and drive profile | Show the underside, any teeth, ribs or guides, and their dimensions. Include the machine belt reference if available. |
| Joint and running path | Describe any required joint and provide the pulley or guide arrangement, pulley diameters and running direction from the machine drawing. |
Photographs to include
- Photograph the whole belt or strip with both faces visible; show the open ends or existing joint.
- Provide an end view with a scale to distinguish backing thickness from bristle trim.
- Show the underside profile and the machine path or pulley drawing.
Where it fits in the process
01
Textile brush-belt replacement
02
Fabric guiding and light brushing
03
Specified stenter-machine belt positions
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Record the backing, bore or drive profile.
- Measure the full working width and running length.
- State the fabric, machine position and contact requirement.
- Include cleaning conditions, temperature and required quantity.
For this product, pay particular attention to:
Belt width, backing thickness and profile, open or endless length; pulley diameter, joint and filament trim.
Frequently asked questions
Is a brush belt the same as a roller that cleans a belt?
No. Here the bristles are tufted into a flexible backing that follows a belt path. A belt-cleaning roller is a separate cylindrical brush. Show the running path and backing when asking for this product.
Does a one-foot listing mean the belt is supplied as a closed loop?
No. The listed length is a catalogue unit. State the finished circumference or open length, joint type and whether an endless loop is required.
What information is needed to quote this flexible tufted brush belt?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Belt width, backing thickness and profile, open or endless length; pulley diameter, joint and filament trim.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
A flexible brush belt or a shaft-mounted roller?
The bristles travel with the flexible backing. Identify the running path, joint and finished length before ordering; a separate cylindrical brush that cleans a belt needs a different mounting and drawing.
- Hollow-Core Textile Roller Brush ↗
Compare a shaft-mounted sleeve when the machine uses a separate roller.
- Tampico Fibre Brush Belt ↗
Compare the plant-fibre fill while specifying the backing and joint independently.
Related terminology: flexible belt brush; textile machine brush belt. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: textile timing-belt and stenter brush applications
Request this brush from IndusBrush, India, for textile timing-belt and stenter brush applications. Include the following details so the supplied configuration can be reviewed against your equipment.
- Backing width, thickness and profile
- Open length or finished loop length and joint
- Pulley diameter, running path and filament trim
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Textile brush applications ↗
Inspection & care
Check backing, joints, tracking and retained fibres with the machine isolated. Use a cleaning method compatible with the backing and fill.
