Road Cleaning / Manufacturer in India

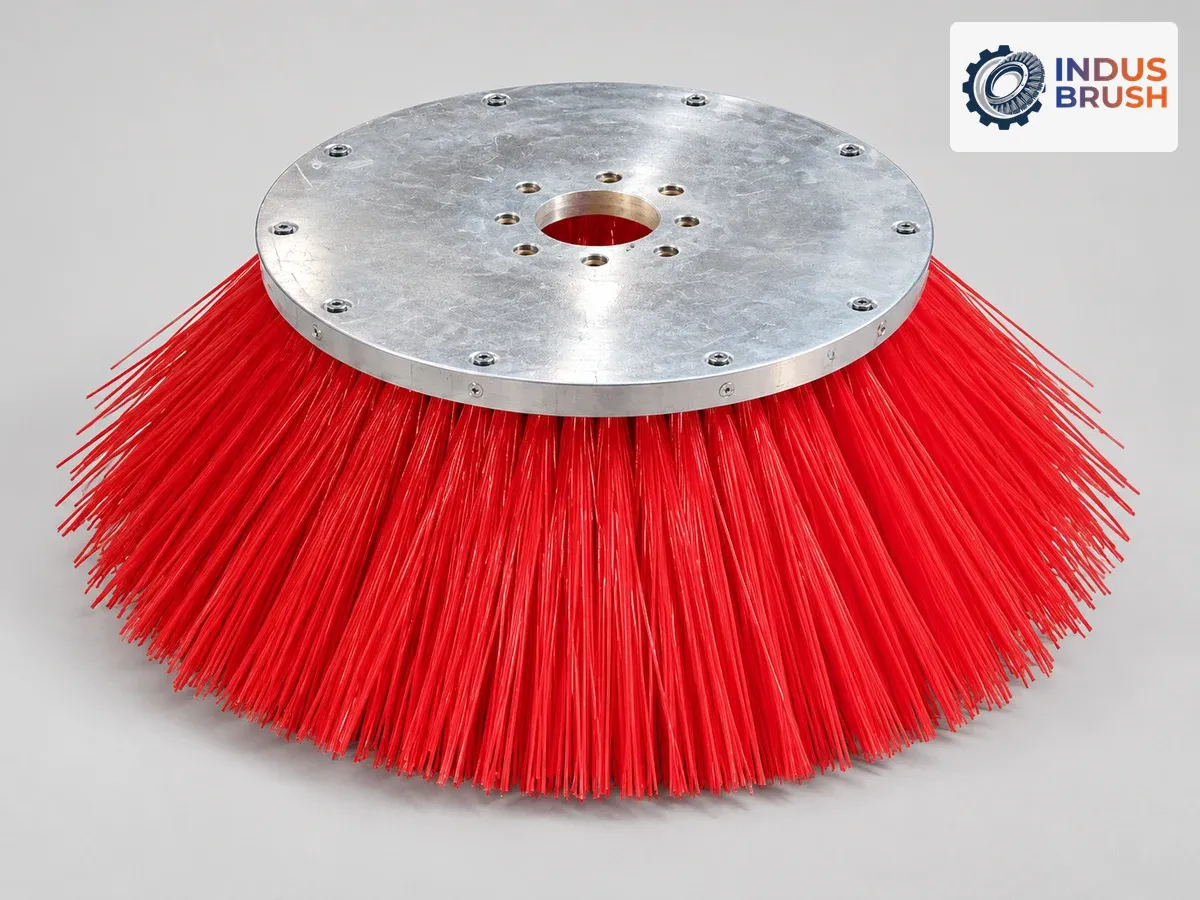

Metal-Top Nylon Gutter Broom
A reinforced side-sweeping broom with a metal top and nylon filaments. It is intended for machine applications where the fixing plate and bristle layout must match the existing assembly.
- Construction
- Metal top with nylon filaments
- Configuration
- 16 in nominal size · More options below
- Application
- Road sweeper side assemblies
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
This design combines a rigid metal mounting surface with a conical nylon bristle arrangement. Plate details affect machine fit, while bristle length and stiffness influence how the tips meet the ground. A photo of the old brush from above and below helps distinguish it from a wooden-backed side disc or a mixed wire/poly broom.
Construction & material
Metal top with nylon filaments
Technical name: Metal-Top Conical Side Sweeping Brush / Reinforced Gutter Broom-NylonListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Metal-Top Conical Side Sweeping Brush / Reinforced Gutter Broom-Nylon |
| Construction | Metal top with nylon filaments |
| Listed option 1 | 16 in nominal size |
| Listed option 2 | 20 in nominal size |
| Listed option 3 | 24 in nominal size |
| Details to confirm | Plate thickness, centre hole and fixing layout; filament diameter, trim length and operating surface |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the side-broom plate and working profile
Measure the metal top, hole pattern and nylon working profile separately. Show any reinforcement, recess or hub on the mounting drawing.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Mounting-plate diameter and thickness | Measure the rigid plate or block, excluding bristles. Show any stepped or recessed areas on a sketch. |
| Centre opening | Record the centre-hole size and shape. Include flats, slots or a raised hub where present. |
| Fixing-hole pattern | Provide the hole count, hole diameters and centre positions. Use a pitch-circle dimension for an equally spaced circular pattern or an accurately dimensioned drawing for other patterns. |
| Bristle tip-to-tip diameter | Record the widest brush diameter without spreading or compressing the bristles. Label worn size separately from required replacement size. |
| Exposed filament trim | Measure from the point where the filament leaves the mounting to its tip along the filament direction; this is not the vertical assembly height. |
| Overall height and profile | Give the overall height from the top mounting face to the lowest bristle tips. Include a side-view sketch of the conical or angled profile. |
Photographs to include
- Provide a straight-on photograph of the mounting face with a scale and all fixing holes visible.
- Show the complete side profile so plate, bristle angle and assembly height can be distinguished.
- Include a close view of the filament arrangement and identify the sweeper model and brush position.
Where it fits in the process
01
Road sweeper side assemblies
02
Paved-surface edge cleaning
03
Replacement of matching metal-top nylon brooms
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Photograph the mounting or drive faces.
- Measure the unworn fixing dimensions separately from the bristle-tip diameter.
- Specify debris, work surface and machine model.
- Confirm assembly order, speed limits and required quantity.
For this product, pay particular attention to:
Plate thickness, centre hole and fixing layout; filament diameter, trim length and operating surface.
Frequently asked questions
Should I choose a nylon gutter broom or a wire side broom?
Start with the surface and debris, then the sweeper specification. Nylon and steel wire have different contact behaviour; the machine mounting and permitted fill must be checked before substitution.
Can I replace a wire broom with this nylon version?
Not on size alone. Compare debris, surface, working pressure and the machine maker’s recommendations. Nylon and wire have different brushing actions, so the material change needs application approval.
What information is needed to quote this metal-top nylon gutter broom?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Plate thickness, centre hole and fixing layout; filament diameter, trim length and operating surface.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Does the sweeper require nylon or a mixed-fill broom?
This construction combines a metal mounting plate with nylon fill. A metal top does not identify the mounting pattern or prove compatibility. Compare centre opening, fixing holes, profile and permitted fill with the existing assembly.
- Wire & Poly Mixed Gutter Broom ↗
Compare a wire/poly mixture as a distinct fill arrangement.
- Steel Wire Side Broom ↗
Compare the steel-wire option only after checking surface and equipment suitability.
Related terminology: nylon side broom; metal-backed sweeper disc brush. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: nylon-filled road sweeper side assemblies
Request this brush from IndusBrush, India, for nylon-filled road sweeper side assemblies. Include the following details so the supplied configuration can be reviewed against your equipment.
- Metal plate diameter, thickness and centre opening
- Fixing-hole pattern, brush diameter and trim
- Filament specification, operating surface and machine limits
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Road Cleaning brush applications ↗
Inspection & care
Inspect fixings, drive engagement and worn or loose filaments with the machine isolated. Follow the sweeper maker’s replacement and operating instructions.
