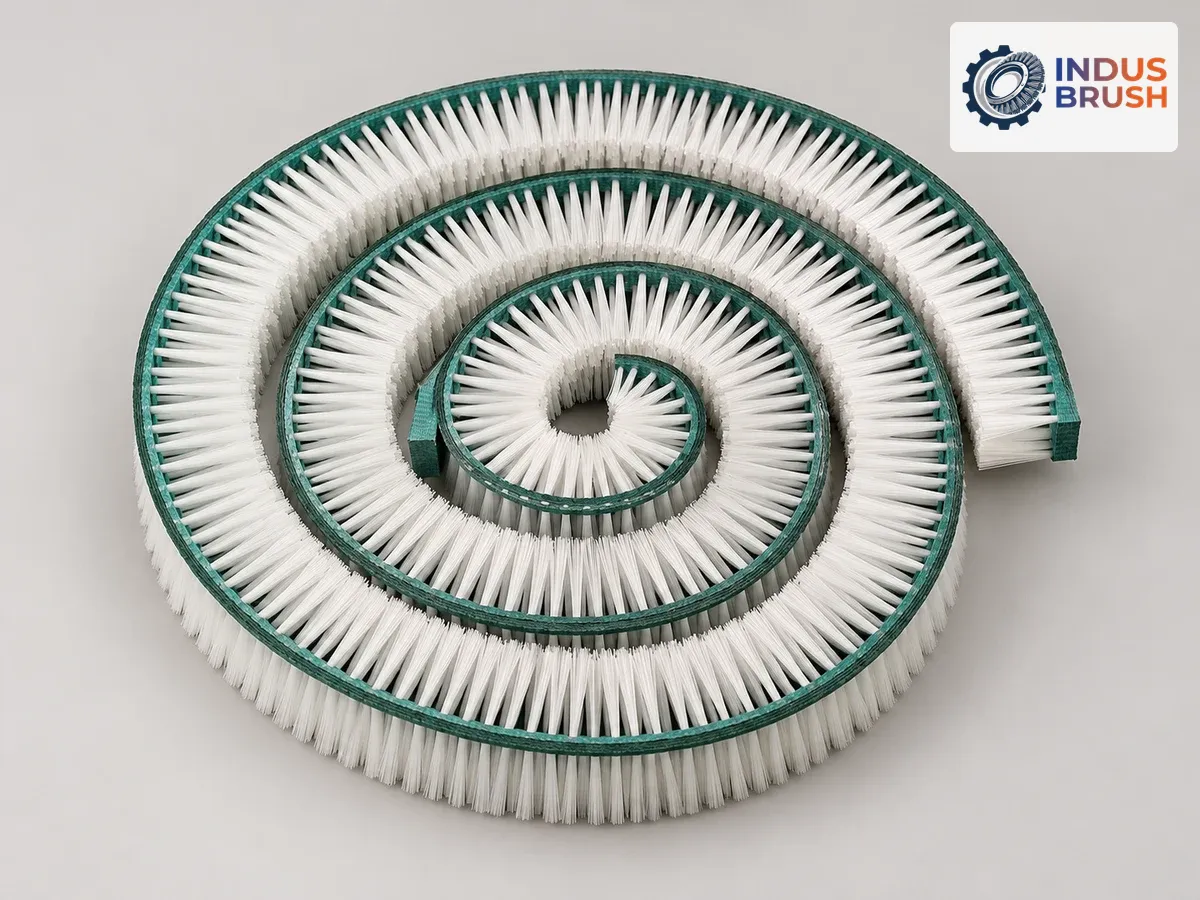

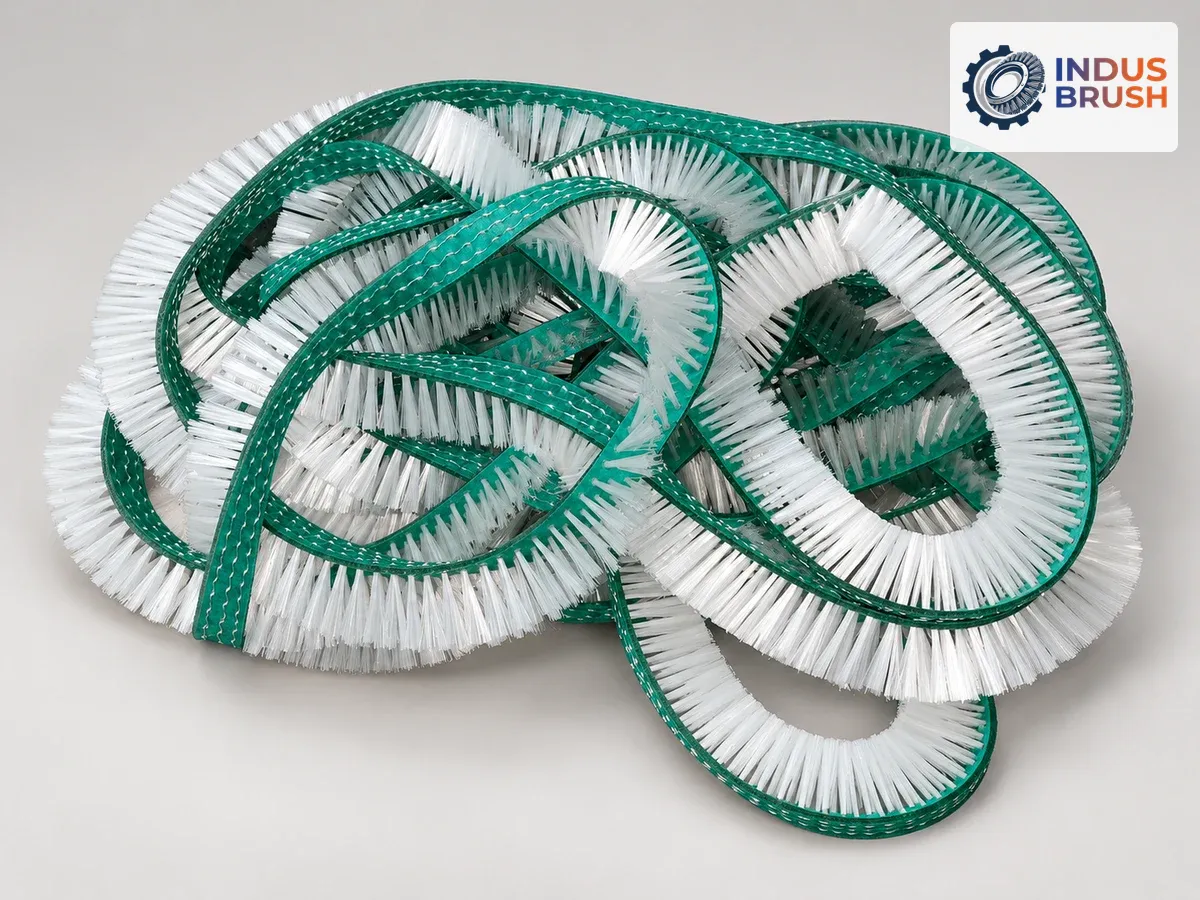

Studio-retouched product views. Refer to the confirmed drawing for exact dimensions and construction.
A flexible basket-wiper brush belt for a compatible centrifuge screen-cleaning position. Correct strip width, backing and trim are essential to fit the machine.
Share a drawing or sample, operating conditions and quantity.
Screen cleaning is sensitive to both the screen surface and the machine’s movement. The brush belt should clear deposits without being specified as a substitute for the separator’s approved maintenance procedure. Screen material, mesh or slot form, product being separated and chemical exposure all belong in the enquiry.
Flexible tufted belt / basket-wiper format
Technical name: Centrifugal Machine Basket Wiper Belt Brush / Centrifuge Screen Cleaning Belt| Parameter | Configuration |
|---|---|
| Product format | Centrifugal Machine Basket Wiper Belt Brush / Centrifuge Screen Cleaning Belt |
| Construction | Flexible tufted belt / basket-wiper format |
| Listed option 1 | 1 in width × 1 ft catalogue length |
| Listed option 2 | 1.5 in width × 1 ft catalogue length |
| Listed option 3 | 2 in width × 1 ft catalogue length |
| Details to confirm | Belt width and length, backing thickness, trim and fixing method; screen material, process product and cleaning chemistry |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗A coiled photograph does not establish an endless belt. Identify the actual screen or basket fixing, finished length and working contact before specifying a replacement.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Backing width | Measure across the backing, perpendicular to its running direction; distinguish this from the spread of the bristle tips. |
| Backing thickness | Measure the backing alone, without including the bristle trim. If there are teeth or ribs, show their profile separately. |
| Finished strip length or loop circumference | State whether the basket wiper is fixed as an open strip or used in a loop. Record the required finished length and its measurement reference; do not infer a loop from a coiled storage photograph. |
| Bristle trim and working width | Measure exposed bristle length from the backing surface to the tips without compressing it. Also give the width actually covered by tufts. |
| Backing and fixing profile | Show the underside, slots, clamps or other fixing arrangement. Identify how the belt is retained at the screen or basket. |
| End fixing and installed path | Dimension end fixings and the installed path from the machine drawing. If the belt moves, include guide or pulley details and running direction. |
Application examples describe the product family. Machine compatibility depends on the final specification.
Belt width and length, backing thickness, trim and fixing method; screen material, process product and cleaning chemistry.
No. Screen contact, backing, belt path and machine retention must be compatible. State the centrifuge model and screen arrangement; a flexible brush belt is not a substitute for the machine’s approved cleaning system.
No. Match it to the machine position, screen geometry and process. A brush that fits physically may still have the wrong stiffness or chemical compatibility for the screen.
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Belt width and length, backing thickness, trim and fixing method; screen material, process product and cleaning chemistry.
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
This belt is matched to the centrifuge screen or basket-cleaning arrangement. Identify the screen, fixing, installed path and clearance. A fruit-washing roller has different contact and mounting requirements.
Compare flexible belt construction while retaining the centrifuge-specific fixing and trim requirements.
Related terminology: basket wiper brush belt; centrifuge mesh cleaning belt. Confirm the actual construction and fit, as similar names do not establish compatibility.
Request this brush from IndusBrush, India, for centrifuge basket and mesh-screen cleaning. Include the following details so the supplied configuration can be reviewed against your equipment.
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Food & Process brush applications ↗
Inspect for wear, loose filaments and trapped product. The cleaning method and complete brush construction must suit the plant’s hygiene and product-contact requirements.
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
