Studio-retouched product views. Refer to the confirmed drawing for exact dimensions and construction.

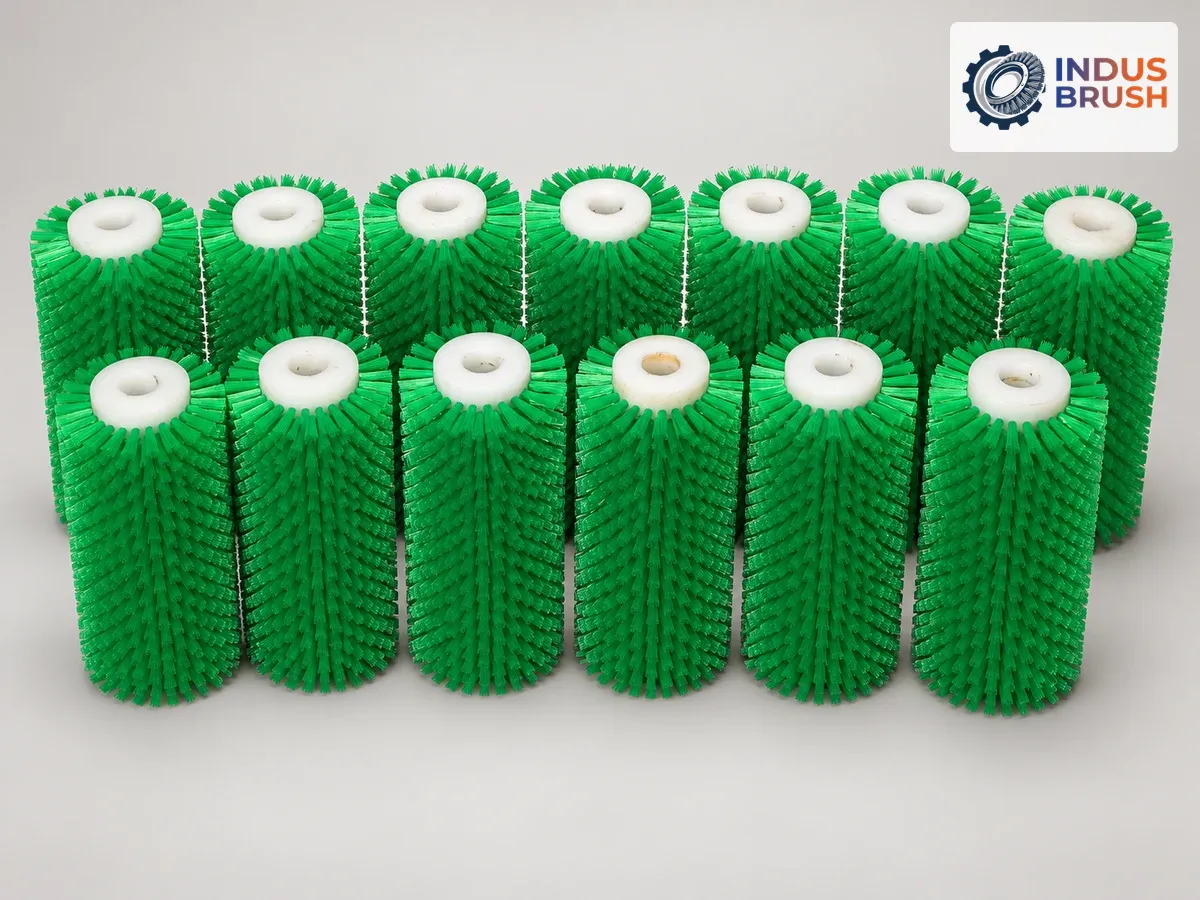

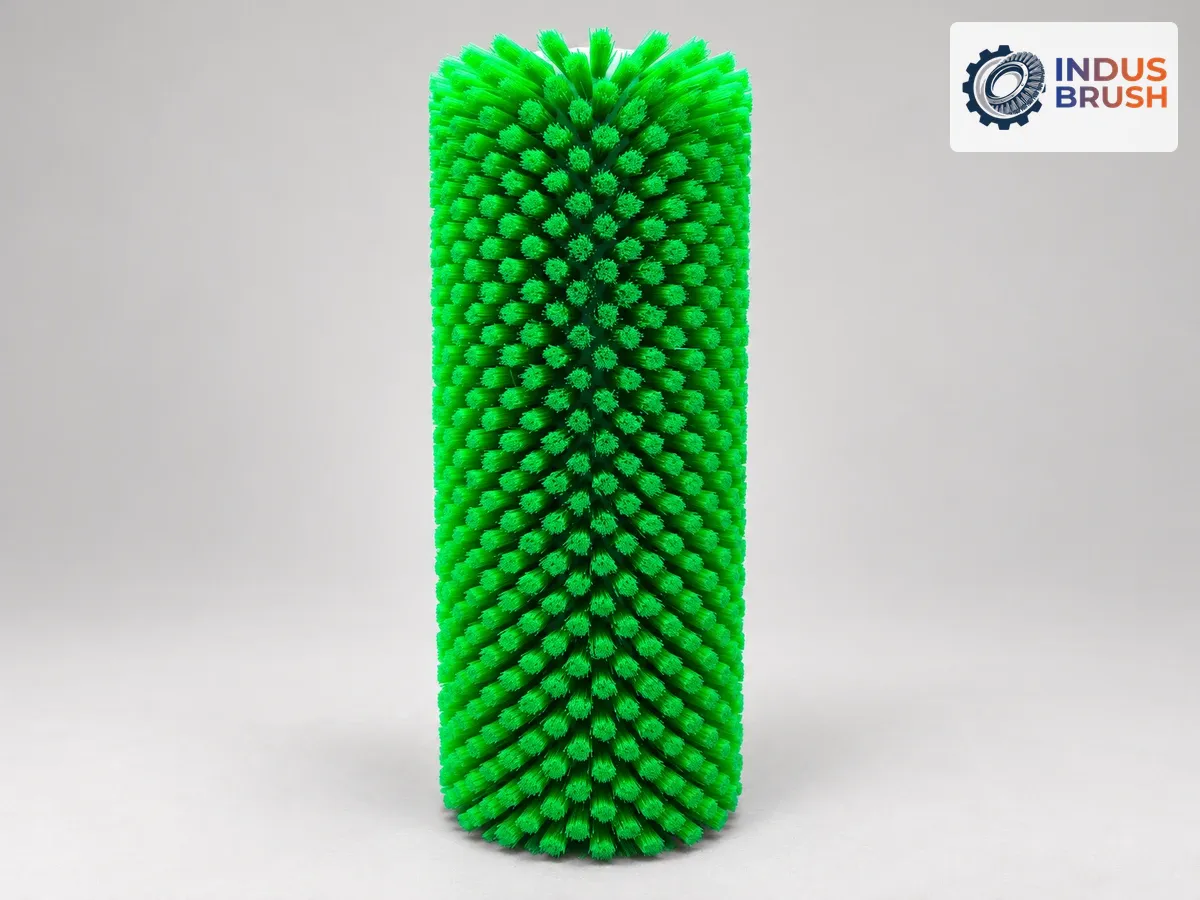

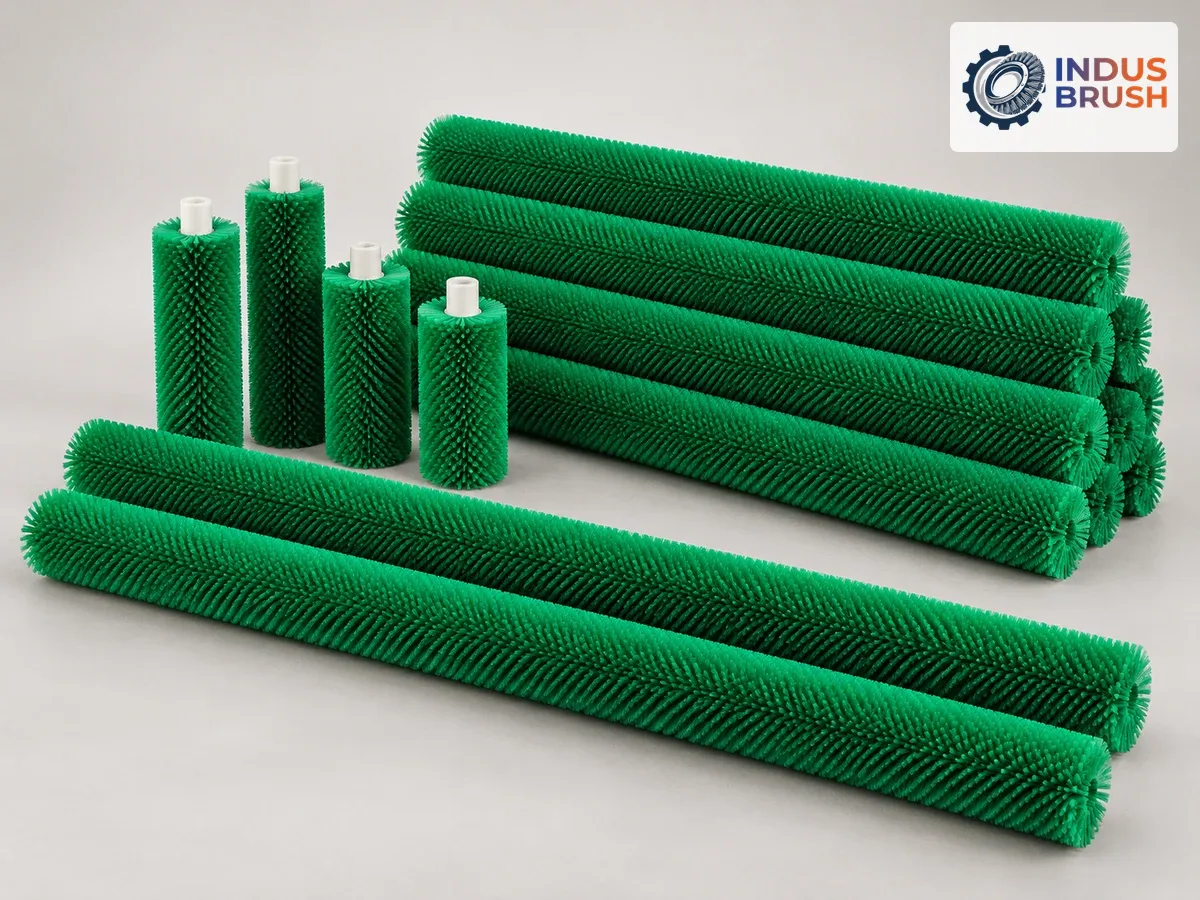

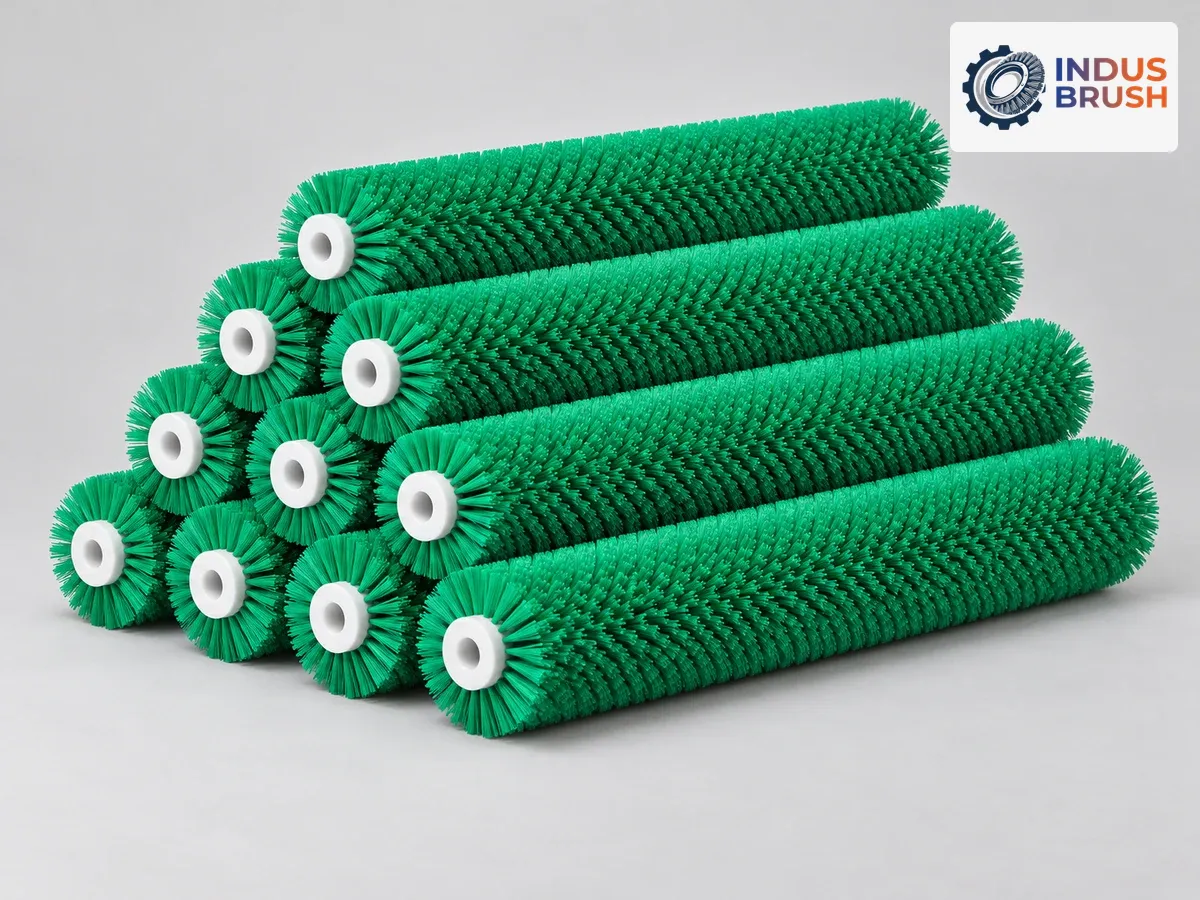

A soft green nylon cylinder brush for kinnow and citrus washing. Choose the working dimensions and filament contact for the actual fruit-handling line.
Share a drawing or sample, operating conditions and quantity.
The roller provides repeated light brushing contact in a compatible washing machine. “Soft” describes the intended product family, not a measured stiffness that can be assumed from colour. The catalogue lists normal and heavy variants; define the filament and construction difference with your sample before selecting a replacement.
Soft green nylon cylindrical fill
Technical name: Soft-Filament Green Nylon Cylindrical Washing Roller| Parameter | Configuration |
|---|---|
| Product format | Soft-Filament Green Nylon Cylindrical Washing Roller |
| Construction | Soft green nylon cylindrical fill |
| Listed option 1 | 1 in nominal catalogue configuration — heavy |
| Listed option 2 | 1 in nominal catalogue configuration — normal |
| Details to confirm | Face length, core or bore and OD; normal/heavy construction, roller spacing and wash conditions |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Separate face length, body length and complete assembly length. Include the washing-line roller spacing and identify the required normal or heavy configuration separately from the dimensions.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Brush face length | Measure along the axis between the start and end of the bristled working face; exclude exposed shaft ends. |
| Brush outside diameter | Record the diameter across the bristle tips without compressing them. Identify whether it is a worn measurement or a required replacement diameter. |
| Core outside diameter | Record the diameter of the body carrying the filaments, excluding bristles. If it cannot be measured, mark it unknown and include an end view. |
| Bore or shaft fit | For a sleeve, record the inside bore and the mating shaft diameter. For a shafted assembly, provide shaft diameters on a drawing. |
| Overall length | Record the complete assembly length, including exposed ends. For a sleeve-only order, record sleeve body length separately from brush face length. |
| Drive and retention details | Show keys, flats, threads, end plugs, clamps or other fixing features on a dimensioned end drawing; do not assume a round bore establishes fit. |
Application examples describe the product family. Machine compatibility depends on the final specification.
Face length, core or bore and OD; normal/heavy construction, roller spacing and wash conditions.
No. Colour identifies the photographed product but does not establish the polymer grade or compliance of the assembly. Confirm the material and any plant-specific documentation required for the washing line.
The supplied sheet uses “heavy” as a catalogue label but does not define a test value. Confirm whether the required change concerns core, fill density or filament specification before manufacture.
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Face length, core or bore and OD; normal/heavy construction, roller spacing and wash conditions.
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
This nylon roller is listed for kinnow and citrus washing. Select the cleaning stage before the fill: a finishing roller for waxing or buffing is a separate construction. Normal/heavy labels need to be defined against the actual sample.
Compare the apple washing format if the line handles apples; mounting still needs to match.
Compare Natural Hair only for a separate fruit-finishing requirement.
Related terminology: citrus washing brush roller; green nylon fruit washing brush. Confirm the actual construction and fit, as similar names do not establish compatibility.
Request this brush from IndusBrush, India, for kinnow and citrus washing lines. Include the following details so the supplied configuration can be reviewed against your equipment.
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Food & Process brush applications ↗
Inspect for wear, loose filaments and trapped product. The cleaning method and complete brush construction must suit the plant’s hygiene and product-contact requirements.
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
Explore product photographs and listed configurations, then share your machine requirements.
2 views
Cylindrical roller brush with a wooden sleeve for machine cleaning applications.
Listed options1 ft nominal length; sleeve bore and mounting to specify
Explore product

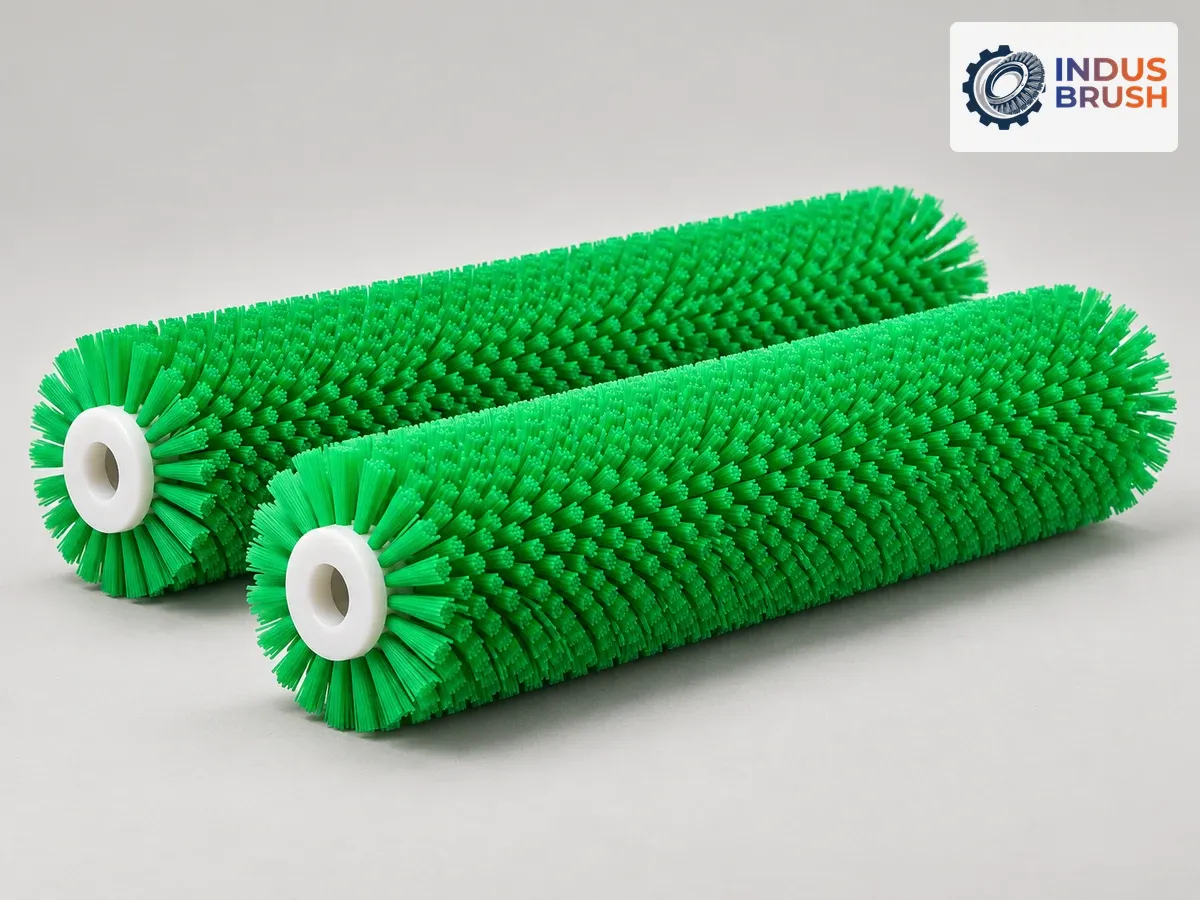

Green soft nylon / PP roller for apple washing and dust removal.
