Food & Process / Manufacturer in India

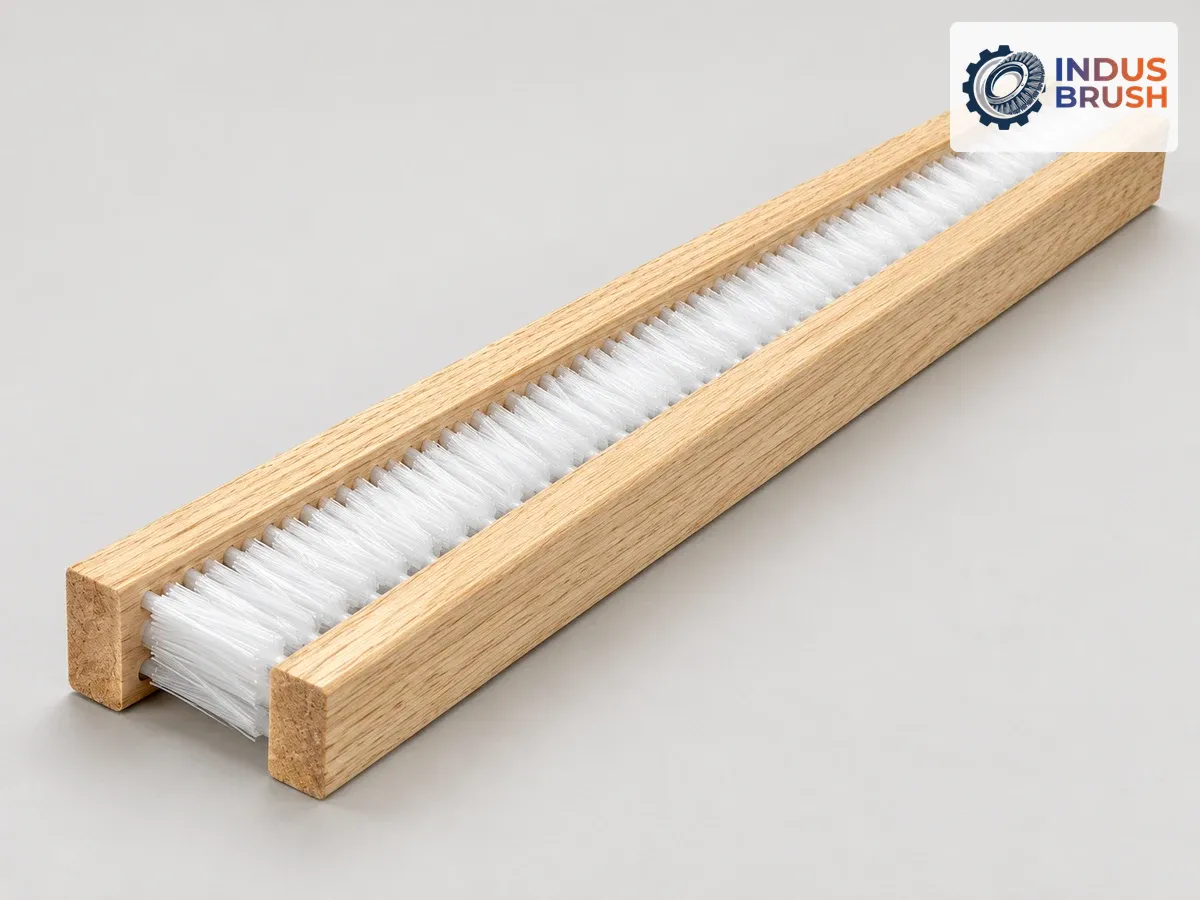

Nylon Roll Body Brush for Flour Mills
A nylon-filled wooden strip for flour-mill sieve-cleaning, bran-duster and conveyor-brushing positions. Confirm the block section and tuft pattern against the existing strip.
- Construction
- Nylon filaments in a wooden strip
- Configuration
- 40 in nominal length — normal wood · More options below
- Application
- Plansifter strip replacement
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
The nylon version is distinguished from a brush strip with an unspecified fill. The material choice still needs to suit the actual product-contact and cleaning procedure. Fit is governed by the wooden section, fixing points and brush projection as well as the nominal strip length.
Construction & material
Nylon filaments in a wooden strip
Technical name: Roll Body Brush-NylonListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Roll Body Brush-Nylon |
| Construction | Nylon filaments in a wooden strip |
| Listed option 1 | 40 in nominal length — normal wood |
| Listed option 2 | 40 in nominal length — Marendi wood |
| Details to confirm | Nominal 40-inch strip length, wood option and section; filament trim, tuft rows, fixings and product-contact requirements |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the wooden backing and working projection
The Nylon Roll Body product is a wooden strip. Mark the bristled face, tuft rows and mounting side; measure wood thickness separately from exposed nylon trim.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Backing length | Measure the wooden block end to end; identify any unbristled end allowance separately. |
| Backing width | Measure the block across the bristled face, without including filaments that spread beyond its edges. |
| Backing depth | Measure the wood alone, from the bristled face to the opposite backing face; show any stepped or shaped section. |
| Exposed bristle trim | Measure from the bristled backing face to the tips without compressing the fill. For more than one bristled face, label each face separately. |
| Tuft rows and working face | Record the number and arrangement of rows, the bristled face or faces and any gaps or unfilled areas. A close-up photograph helps identify the layout. |
| Mounting-hole positions | Give hole diameters and positions from one identified end and side of the backing. Include slots, countersinks or clamps where present. |
Photographs to include
- Photograph the full strip with a scale and mark which end is the drawing datum.
- Show an end view that makes the wood section and bristled face clear.
- Show the mounting holes or clamps and the tuft arrangement without cropping.
Where it fits in the process
01
Plansifter strip replacement
02
Flour-mill bran-duster brushing
03
Specified conveyor sweeping positions
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Measure the working length, backing or bore and outside dimensions.
- Identify the process stage and product being handled.
- State cleaning chemistry, moisture and operating conditions.
- Specify product-contact documentation and required quantity.
For this product, pay particular attention to:
Nominal 40-inch strip length, wood option and section; filament trim, tuft rows, fixings and product-contact requirements.
Frequently asked questions
How is the nylon version different from the other Roll Body Brush?
The listed nylon version specifies a synthetic fill in a wooden strip format. Compare the material, brush projection and mounting against the existing brush; the similar product name does not establish identical construction.
Is every nylon strip automatically suitable for food contact?
No. The exact polymer grade, backing, anchoring and complete construction must satisfy the intended product-contact requirements. Specify the documentation needed in the enquiry.
What information is needed to quote this nylon roll body brush?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Nominal 40-inch strip length, wood option and section; filament trim, tuft rows, fixings and product-contact requirements.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Roll body brush strip or cylindrical roller brush?
Despite the roll body name, this photographed product is a straight wooden brush strip. Specify the mill position, backing section, mounting and bristle projection; do not order it as a shaft-mounted cylinder.
- Roll Body Brush for Flour Mills ↗
Compare the other listed roll body construction; confirm the actual fill before substitution.
- Wooden-Sleeve Industrial Roller Brush ↗
Compare the cylindrical wooden sleeve when that is the required machine format.
Related terminology: nylon flour mill brush strip; nylon plansifter cleaning strip. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: nylon-filled flour-mill sieve and conveyor cleaning
Request this brush from IndusBrush, India, for nylon-filled flour-mill sieve and conveyor cleaning. Include the following details so the supplied configuration can be reviewed against your equipment.
- Required strip length and wooden block cross-section
- Nylon trim, tuft rows and fixing pattern
- Machine position, wood option and plant material requirements
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Food & Process brush applications ↗
Inspection & care
Inspect for wear, loose filaments and trapped product. The cleaning method and complete brush construction must suit the plant’s hygiene and product-contact requirements.
