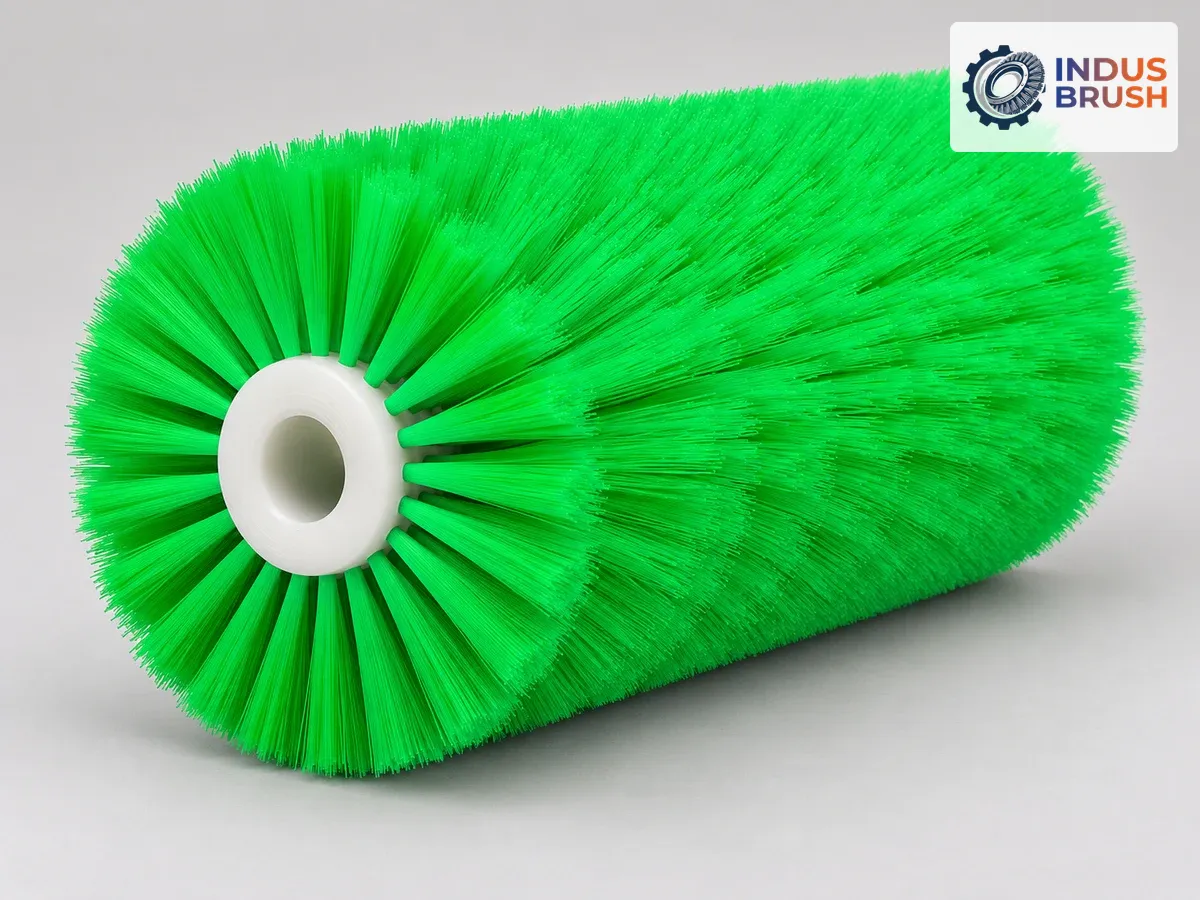

Solar Cleaning Robot Roller Brush
A soft-filament cylindrical roller for compatible motorised solar-panel cleaning equipment. Match the roller to the robot drive, supports and panel-cleaning instructions.
- Construction
- Soft-filament cylindrical solar-cleaning roller
- Configuration
- 1 ft catalogue length unit; robot working width to specify
- Application
- Compatible solar-cleaning robot replacement
Specify the right fit for your machine.
Share a drawing or sample, operating conditions and quantity.
What this brush is designed to do
Robot rollers are machine components, not complete cleaning robots. End fittings, balance, working width and filament contact must correspond to the equipment. Brush colour is not a universal stiffness code: manufacturers use different fill systems. Panel-maker instructions and the robot’s approved wet or dry process govern the cleaning method.
Construction & material
Soft-filament cylindrical solar-cleaning roller
Technical name: Solar Panel Cleaning Robot Roller Brush / Motorized Cylindrical Solar Brush / Soft-Tip PV Glass Cleaner RollerListed sizes & specification options
| Parameter | Configuration |
|---|---|
| Product format | Solar Panel Cleaning Robot Roller Brush / Motorized Cylindrical Solar Brush / Soft-Tip PV Glass Cleaner Roller |
| Construction | Soft-filament cylindrical solar-cleaning roller |
| Listed option 1 | 1 ft catalogue length unit; robot working width to specify |
| Details to confirm | Robot model, face length, OD and drive-end drawing; wet/dry method, panel coating and approved speed |
Listed dimensions are reference configurations. Final bore, mounting, material grade and operating suitability are confirmed for your order.
Send your dimensions for matching ↗Measure the roller and its mounting
Match the roller to its robot and support arrangement. Provide the robot model and permitted cleaning method; the brush dimensions do not define a complete robot system.
Use one unit system and label required dimensions separately from worn measurements. Isolate the equipment before inspection; mark inaccessible dimensions as unknown.
| Detail to record | How to record it |
|---|---|
| Brush face length | Measure along the axis between the start and end of the bristled working face; exclude exposed shaft ends. |
| Brush outside diameter | Record the diameter across the bristle tips without compressing them. Identify whether it is a worn measurement or a required replacement diameter. |
| Core outside diameter | Record the diameter of the body carrying the filaments, excluding bristles. If it cannot be measured, mark it unknown and include an end view. |
| Bore or shaft fit | For a sleeve, record the inside bore and the mating shaft diameter. For a shafted assembly, provide shaft diameters on a drawing. |
| Overall length | Record the complete assembly length, including exposed ends. For a sleeve-only order, record sleeve body length separately from brush face length. |
| Robot coupling and end retention | Show the drive coupling, end supports and retention at both ends, with a dimensioned drawing and robot model or part reference. |
Photographs to include
- Photograph the full roller beside a scale, showing both ends without cropping.
- Provide a straight-on view of each end and a close view of the drive or retention feature.
- Show the robot coupling and support at each end, plus the existing roller part reference if present.
Where it fits in the process
01
Compatible solar-cleaning robot replacement
02
Motorised PV-cleaning roller assemblies
03
Specified panel-cleaning maintenance programmes
Application examples describe the product family. Machine compatibility depends on the final specification.
Four details that make a better enquiry
- Identify the pole or robot and its brush connection.
- Measure the brush working width, body and end fittings.
- State panel type and the approved wet or dry method.
- Confirm water-feed or drive details and required quantity.
For this product, pay particular attention to:
Robot model, face length, OD and drive-end drawing; wet/dry method, panel coating and approved speed.
Frequently asked questions
Does ordering the roller include a complete cleaning robot?
This page concerns the brush roller, not a complete powered robot. Supply the robot model, working width, shaft or bore and mounting details so the replacement brush can be assessed.
Can this roller be used dry on any solar panel?
No. Dry-cleaning approval depends on the panel coating, soil and cleaning system. Follow the module and equipment manufacturers’ instructions, and confirm the filament specification before use.
What information is needed to quote this solar cleaning robot roller?
Send a sample or drawing, required quantity and the operating conditions. For this product, include: Robot model, face length, OD and drive-end drawing; wet/dry method, panel coating and approved speed.
Can the listed configuration be matched to my machine?
The listed options are starting configurations, not universal machine approvals. IndusBrush confirms the final dimensions, mounting and material specification against your drawing or sample before manufacture.
Brush roller replacement or complete cleaning robot?
This is a cylindrical brush component for compatible equipment. Specify both ends, working face and coupling or retention. Motor, drive and a complete powered cleaning system are separate requirements.
- Water-Fed Solar Panel Brush Head ↗
Compare the rectangular head for a pole-mounted water-fed arrangement.
Related terminology: robotic solar panel brush roller; PV cleaning robot brush. Confirm the actual construction and fit, as similar names do not establish compatibility.
Export specification: compatible solar panel cleaning robots
Request this brush from IndusBrush, India, for compatible solar panel cleaning robots. Include the following details so the supplied configuration can be reviewed against your equipment.
- Robot model, face length and outside diameter
- Drive-end drawing, coupling and retention arrangement
- Wet/dry cleaning method and panel-maker limits
State sample and production quantities separately, with destination country and city or port. Packing, material documents, commercial terms and delivery arrangements are agreed in the quotation.
International ordering & export requirements ↗
Compare Solar Cleaning brush applications ↗
Inspection & care
Keep grit out of the brush and inspect the panel-contacting surface. Follow the panel and equipment makers’ cleaning instructions, including water and temperature restrictions.
Technical reading & application context
These independent references explain general brush technology. They do not certify or specify an IndusBrush product; the listed configurations and final quotation define the supplied item.
Explore the range
Solar Cleaning Brushes
Explore product photographs and listed configurations, then share your machine requirements.
Solar Cleaning Robot RollerGet a quote ↗
